KY EA560, EagleBurgmann EA560, Elastomer Bellow Shaft Seals

Combined Materials:
Stationary Ring (Alumina 99%/Alumina 99.5%/SiC/SSiC/TC)
Rotary Ring (Carbon/SiC/SSiC/TC)
Secondary Seal (NBR/EPDM/Viton)
Spring and Punched Parts (SS304/SS316)

Working Conditions:
Mediums: Water, oil, and weakly-corrosive mediums.
Temperature: -20°C~150°C
Pressure: ≤0.8MPa
Speed: ≤ 10 m/Sec

Preview the KY EA560 PDF File

Download KY EA560, EKK EA560, Elastomer Bellow Shaft Seals.pdf

If you have any questions, please send us an EMAIL about your technical applications.

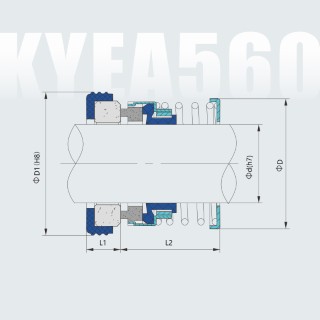

Part Numbers	d	D	D1	L1	L2
KY EA560-8	8	18.2	21	6	12.2
KY EA560-9	9	18.2	24	7	16.2
KY EA560-10	10	20.6	24	7	16.2
KY EA560-11	11	20.6	24	7	16.2
KY EA560-12	12	21.8	26	7	17.2
KY EA560-13	13	21.8	26	7	17.2
KY EA560-14	14	26.4	28	7	18.2
KY EA560-15	15	26.4	28	7	18.2
KY EA560 16	16	26.4	32	8	19.2
KY EA560-17	17	29.5	32	8	19.2
KY EA560-18	18	29.5	35	8	19.2
KY EA560-19	19	29.5	35	8	19.2
KY EA560-20	20	31.6	38	8	20.2
KY EA560-22	22	33.6	40	8	20.2
KY EA560-25	25	39.6	44	9	20.2
KY EA560-28	28	45	46	9	21.2
KY EA560-30	30	46.6	50	9	22.2
KY EA560-32	32	46.6	54	9	24.2
KY EA560-35	35	50.8	58	10	26.2
KY EA560-38	38	54.3	60	10	27.2
KY EA560-40	40	57.3	64	10	28.2
KY EA560-45	45	61.3	66	10	30.2
KY EA560-50	50	67.8	72	10	32.2
KY EA560-3/8"	9.525	23.5	22.225	6.4	22.2
KY EA560-1/2"	12.7	26	25.4	6.4	22.2
KY EA560-5/8"	15.875	30	31.75	8.7	23.8
KY EA560-3/4"	19.05	32.5	34.925	8.7	23.8
KY EA560-7/8"	22.225	37.5	38.1	8.7	25.4
KY EA560-1"	25.4	44	41.275	9.5	27
KY EA560-11/8"	28.575	48	44.45	9.5	28.6
KY EA560-11/4"	31.75	50	47.625	9.5	28.6
KY EA560-13/8"	34.925	54.5	50.8	9.5	30.2
KY EA560-11/2"	38.1	58.5	53.975	9.5	30.2
KY EA560-15/8"	41.275	64	60.325	11.1	36.5
KY EA560-13/4"	44.45	67	63.5	11.1	36.5
KY EA560-17/8"	47.625	71	66.675	11.1	39.7
KY EA560-2"	50.8	73.5	69.85	11.1	39.7
