KY MFL85N, Burgmann MFL85N, Welded Metal Bellow Mechanical Seals

Combined Materials:
Stationary Ring (SiC/SSiC/TC)
Rotary Ring (Carbon/SiC/SSiC/TC)
Secondary Seal (NBR/EPDM/Viton)
Bellow (AM350/Inconel 718)
Metal Part (SS304/SS316)

Working Conditions:
Mediums: Oil, light hydrocarbon, aromatic hydrocarbon, organic solvents, weak acids, alkali, Ammonia, etc.
Temperature: -20°C~200°C
Pressure: ≤ 2.0MPa
Speed: ≤ 23m/Sec

Preview the KY MFL85N PDF File

Download KY MFL85N, Burgmann MFL85N, Welded Metal Bellow Mechanical Seals.pdf

If you have any questions, please send us an EMAIL about your technical applications.

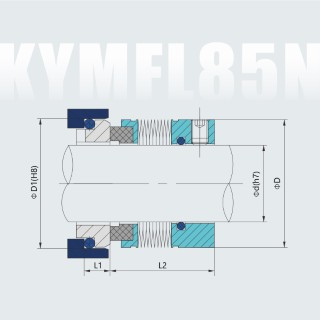

Part Numbers	d	D	D1	L1	L2
KY MFL85N-18	18	32	33	7	30.7
KY MFL85N-20	20	33.5	35	7	30.7
KY MFL85N-22	22	36.5	37	7	30.7
KY MFL85N-24	24	39	39	11.5	28.7
KY MFL85N-25	25	39.6	40	11.5	28.7
KY MFL85N-28	28	42.8	43	11.5	31.2
KY MFL85N-30	30	45	45	11.5	31.2
KY MFL85N-32	32	46	48	11.5	31.2
KY MFL85N-33	33	48	48	11.5	31.2
KY MFL85N-35	35	49.2	50	11.5	31.2
KY MFL85N-38	38	52.3	56	14	31.2
KY MFL85N-40	40	55.5	58	14	31.2
KY MFL85N-43	43	57.5	61	14	31.2
KY MFL85N-45	45	58.7	63	14	31.2
KY MFL85N-48	48	61.9	66	14	31.2
KY MFL85N-50	50	65	70	15	32.7
KY MFL85N-53	53	68.2	73	15	32.7
KY MFL85N-55	55	70	75	15	32.7
KY MFL85N-58	58	71.7	78	15	37.7
KY MFL85N-60	60	74.6	80	15	37.7
KY MFL85N-63	63	79	83	15	37.7
KY MFL85N-65	65	84.1	85	15	37.7
KY MFL85N-68	68	87.3	90	18	34.7
KY MFL85N-70	70	87.3	92	18	42.2
KY MFL85N-75	75	95	97	18	42.2
KY MFL85N-80	80	98.4	105	18.2	42
KY MFL85N-85	85	104.7	110	18.2	42
KY MFL85N-90	90	111	115	18.2	47
KY MFL85N-95	95	114	120	17.2	48
KY MFL85N-100	100	117.4	125	17.2	48
