Armor Ceramic Tiles and Armor Plates
Ceramic Armor, Ceramic Ballistic Vehicle Armor, Ceramic Ballistic Body Armor, Bulletproof Vehicle, Vehicle Armor, Armored Car, Aircraft Armor

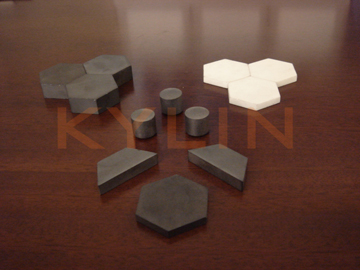

Armor Ceramic Tiles & Armor Plates (Pressureless Sintered Silicon Carbide (SSiC) & High Alumina Ceramic (99% Cer / 99.5% Cer)). We have various molds to meet your requirements, the shapes have hexagon, semi hexagon, rectangle, short corner, single curved and so on. Our manufacturing capacity (per annum) is 300-500 tons.
Download the 2015 Armor Ceramic Tiles Catalogue.
Pressureless Sintered Silicon Carbide (SSiC) and Alumina (99%, 99.5%) materials Armor Ceramic Tiles and Armor Plates, for ballistic body armor, ballistic vehicle armor, armor car, & aircraft armor, etc.
|
Pressureless Sintered Silicon Carbide (SSiC) physical property |
||
| Technical Parameter | Unit | SSiC |
| Hardness | HS | 115 |
| Porosity Rate | % | <0.2 |
| Density | g/cm3 | >3.10 |
| Compressive Strength | MPa | >2500 |
| Fractural Strength | MPa | >380 |
| Coefficient of Heat Expansion | 10-6/°C | 4.2 |
| Content of Sic | % | ≥98 |
| Free Si | % | ≤1 |
| Elastic Modulus | GPa | ≥410 |
| Temperature | °C | 1400 |
| AL2O3 Ceramic physical property | |||
| Technical Parameter | Unit | 99% | 99.5% |
| Content of Al2O3 | % | 99 | 99.5 |
| Density | g/cm3 | 3.88 | 3.9 |
| Hardness | HRA | 88 | 90 |
| Porosity Rate | % | <0.2 | <0.15 |
| Fractural Strength | MPa | 310 | 350 |
| Coefficient of Heat Expansion | 10-6/K | 5.3 | 5.2 |
| Thermal Conductivity | W/M.K | 26.7 | 26 |
Download the 2015 Armor Ceramic Tiles Catalogue.
If you have any questions please contact us at: E-Mail about your technical applications.
| Shapes | Specification Distance between parallel sides(mm) * Thickness(mm) |
| Hexagon | 14.2*2.6 |
| Hexagon | 20*13 |
| Hexagon | 27.7*6.2 |
| Hexagon | 30*3.5 |
| Hexagon | 30*3.9 |
| Hexagon | 30*4 |
| Hexagon | 30*4.1 |
| Hexagon | 30*4.2 |
| Hexagon | 30*5.1 |
| Hexagon | 30*6 |
| Hexagon | 30*7 |
| Hexagon | 30*8 |
| Hexagon | 30*9.1 |
| Hexagon | 30*10 |
| Hexagon | 30*10.5 |
| Hexagon | 83.14*5 |
| Hexagon | 83.14*6 |
| Hexagon | 83.14*6.2 |
| Hexagon | 83.14*6.5 |
| Hexagon | 83.14*6.7 |
| Hexagon | 83.14*8 |
| Hexagon | 83.14*8.2 |
| Hexagon | 83.14*10 |
| Hexagon | 83.14*10.2 |
| Hexagon | 83.14*10.5 |
| Hexagon | 83.14*12 |
| Hexagon | 83.14*15.5 |
| Hexagon | 83.14*16 |
| Hexagon | 83.14*16.2 |
| Hexagon | 83.14*18 |
| Hexagon | 83.14*18.2 |
| Hexagon | 83.14*20.2 |
| Shapes | Specification W(mm) * H(mm) * Thickness(mm) |
| Rectangle | 4*3*36 |
| Rectangle | 5*20*35 |
| Rectangle | 10*10*10 |
| Rectangle | 35*35*6 |
| Rectangle | 35*35*8 |
| Rectangle | 50*50*4 |
| Rectangle | 50*50*5 |
| Rectangle | 50*50*8 |
| Rectangle | 50*50*10 |
| Rectangle | 50*50*10.2 |
| Rectangle | 50*50*10.3 |
| Rectangle | 50*50*11 |
| Rectangle | 50*50*12 |
| Rectangle | 50*50*12.5 |
| Rectangle | 50*50*15 |
| Rectangle | 100*100*8 |
| Shapes | Specification W(mm) * H(mm) * Thickness(mm) |

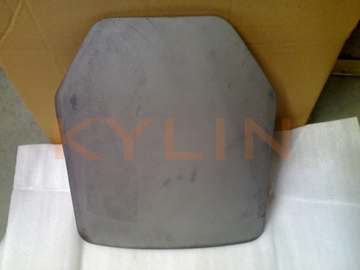

| Curved Plate | 145*145*9.3 |
| Curved Plate | 235*285*9.3 |
| Curved Plate | 235*285*10 |
| Curved Plate | 245*295*5 |
| Curved Plate | 245*295*5.5 |
| Curved Plate | 245*295*6 |
The common sizes we always have existing stocks. If the sizes you required are not in the list, please let us know, we can check if have existing molds or if can modify molds, we also can open new molds to produce according to your drawings, specifications or samples.
Download the 2015 Armor Ceramic Tiles Catalogue.
