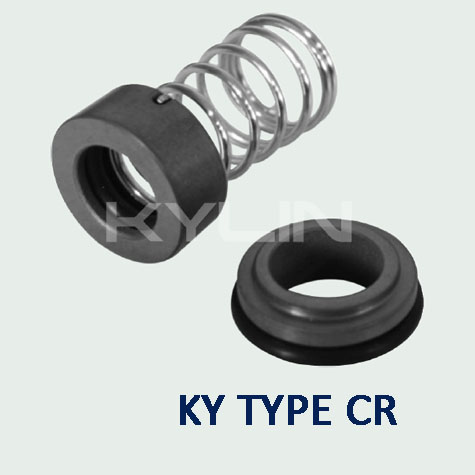

KY TYPE CR, Elastomer Bellow Shaft Seals

Combined Materials:
Stationary Ring (Alumina 99%/Alumina 99.5%/SiC/SSiC/TC)
Rotary Ring (Carbon/SiC/SSiC/TC)
Secondary Seal (NBR/EPDM/Viton)
Spring and Punched Parts (SS304/SS316)

Working Conditions:
Mediums: Water, oil and weakly-corrosive mediums.
Temperature: -20°C~150°C
Pressure: ≤1.2MPa
Speed: ≤ 10 m/Sec

Download KY TYPE CR, Elastomer Bellow Shaft Seals.pdf

If you have any questions, please send us an EMAIL about your technical applications.

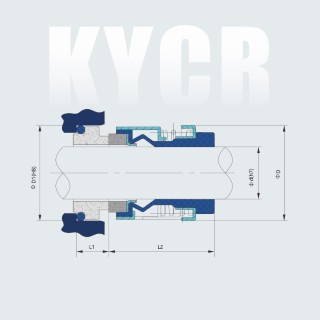

Part Numbers d D D1 L1 L2
KY TYPE CR-12 12 22 23 8 31
KY TYPE CR-16 16 26 27 8 32.5
